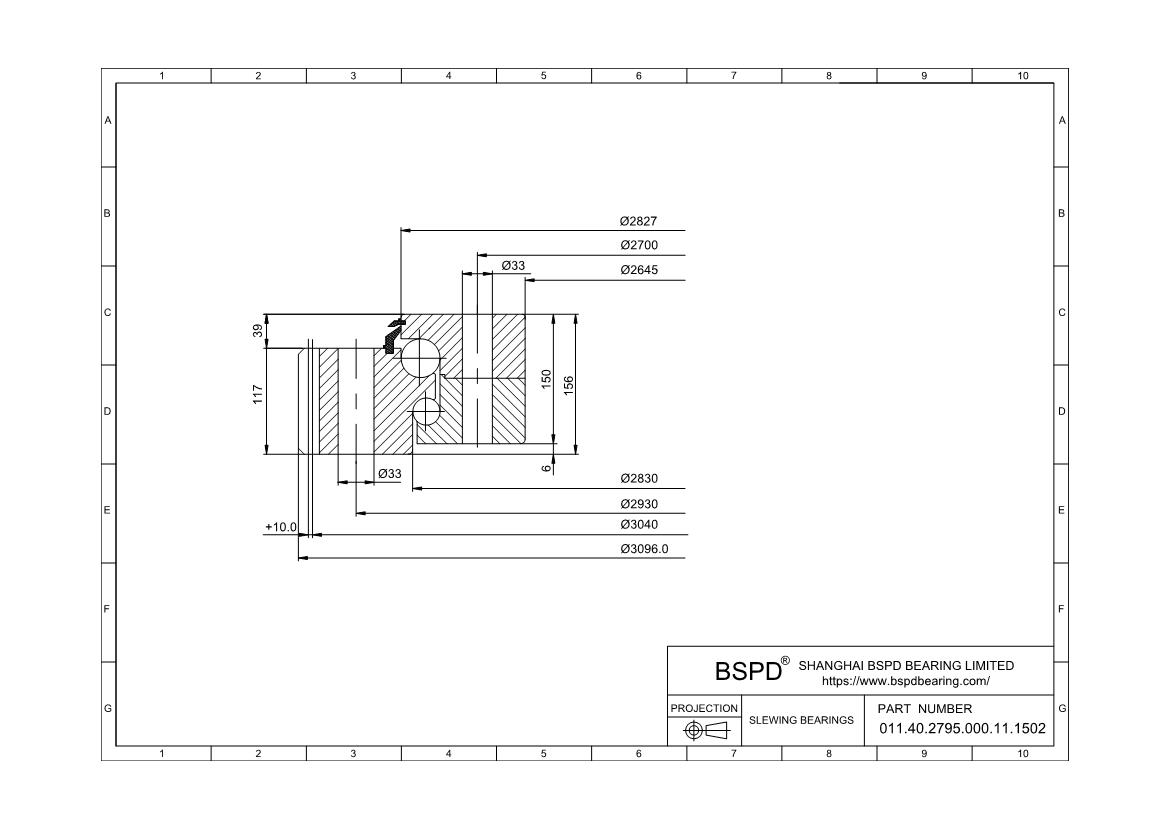

011.40.2795.000.11.1502
Metric Size Slewing Rings (2)
Dimensions: Bore (Inner) Diameter: 2645 mm； Outer Diameter: 3096 mm； Width (Thickness): 156 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | 011.40.2795.000.11.1502 |
| Series | Series 01 |
| Gear | External gear |
| Type | Ball |
| System of Measurement | Metric |
| Inside Diameter Of Inner Ring | 2645 mm |
| Outside Diameter Of Outer Ring | 3096.0 mm |
| Internal Diameter On Outer Ring | 2830 mm |
| Height Of Overall Bearing Assembly | 156 mm |
| Height Of Inner Ring | 150 mm |
| Height Of Outer Ring | 117 mm |
| External Diameter On Inner Ring | 2827 mm |
| Ring Material | 42CRO or 50MN |
| Ball Materrial | 52100_Chrome_Steel |
| Cage Material | Nylon or 300 Series Stainless Steel |
| Seal Material | NBR |
| Weight Of Bearing Assembly | 1723 Kg |
| Bolt Circle In Inner Ring | 2700 mm |
| Bolt Circle In Outer Ring | 2930 mm |
| Size Of Hole In Inner Ring | 33 mm |
| Size Of Hole In Outer Ring | 33 mm |
| Number Holes In Inner Ring | 54 |
| Number Holes In Outer Ring | 54 |
| Diametral Pitch | 3040 mm |
| Number Of Gear Teeth | 152 |
| Permissible Tooth Forces T | 146.9 |
| Max Gear Tooth Load Fz | 293.9 |
| Diameter Of Bearing Raceway | 2795 mm |
| Distance Between Bottom Outer Ring Inner Ring | 6 mm |
| Correspond | FIG1 |
| x·m | +10 |
| k·m | –2.0 |
| K | 39 mm |
| n1 | 6 |
| Bolt Size (M) | 30 mm |
| M | 20 |
| F | 117 mm |
| RoHS | Compliant |
Print PDF
Request a 3D CAD Model
