011.35.2220.001.41.1503
Metric Size Slewing Rings (2)
Dimensions: Bore (Inner) Diameter: 2090 mm； Outer Diameter: 2461.2 mm； Width (Thickness): 138 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | 011.35.2220.001.41.1503 |
| Series | Series 01 |
| Gear | External gear |
| Type | Ball |
| System of Measurement | Metric |
| Inside Diameter Of Inner Ring | 2090 mm |
| Outside Diameter Of Outer Ring | 2461.2 mm |
| Internal Diameter On Outer Ring | 2249 mm |
| Height Of Overall Bearing Assembly | 138 mm |
| Height Of Inner Ring | 132 mm |
| Height Of Outer Ring | 104 mm |
| External Diameter On Inner Ring | 2254 mm |
| Ring Material | 42CRO or 50MN |
| Ball Materrial | 52100_Chrome_Steel |
| Cage Material | Nylon or 300 Series Stainless Steel |
| Seal Material | NBR |
| Weight Of Bearing Assembly | 1019 Kg |
| Bolt Circle In Inner Ring | 2135 mm |
| Bolt Circle In Outer Ring | 2335 mm |
| Size Of Hole In Inner Ring | 26 mm |
| Size Of Hole In Outer Ring | 26 mm |
| Number Holes In Inner Ring | 60 |
| Number Holes In Outer Ring | 60 |
| Diametral Pitch | 2422 mm |
| Number Of Gear Teeth | 173 |
| Diameter Of Bearing Raceway | 2220 mm |
| Distance Between Bottom Outer Ring Inner Ring | 6 mm |

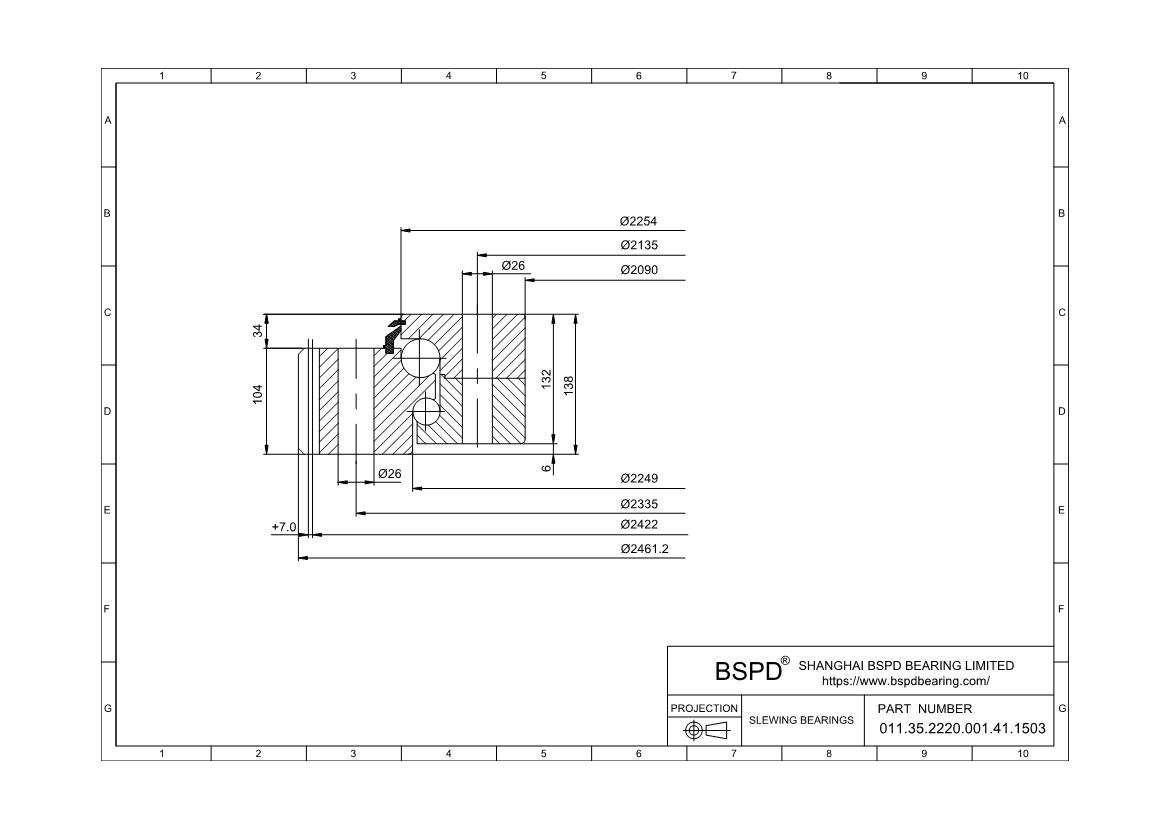

| Correspond | FIG1 |
| x·m | +7.0 |
| k·m | –1.4 |
| K | 34 mm |
| n1 | 4 |
| Bolt Size (M) | 24 mm |
| M | 14 |
| F | 104 mm |
| RoHS | Compliant |
Print PDF
Request a 3D CAD Model
