011.30.1440.191.41.1503
Metric Size Slewing Rings (2)
Dimensions: Bore (Inner) Diameter: 1320 mm； Outer Diameter: 1653.6 mm； Width (Thickness): 120 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | 011.30.1440.191.41.1503 |
| Series | Series 01 |
| Gear | External gear |
| Type | Ball |
| System of Measurement | Metric |
| Inside Diameter Of Inner Ring | 1320 mm |
| Outside Diameter Of Outer Ring | 1653.6 mm |
| Internal Diameter On Outer Ring | 1460 mm |
| Height Of Overall Bearing Assembly | 120 mm |
| Height Of Inner Ring | 114 mm |
| Height Of Outer Ring | 91 mm |
| External Diameter On Inner Ring | 1469 mm |
| Ring Material | 42CRO or 50MN |
| Ball Materrial | 52100_Chrome_Steel |
| Cage Material | Nylon or 300 Series Stainless Steel |
| Seal Material | NBR |
| Weight Of Bearing Assembly | 520 Kg |
| Bolt Circle In Inner Ring | 1365 mm |
| Bolt Circle In Outer Ring | 1545 mm |
| Size Of Hole In Inner Ring | 26 mm |
| Size Of Hole In Outer Ring | 26 mm |
| Number Holes In Inner Ring | 36 |
| Number Holes In Outer Ring | 36 |
| Diametral Pitch | 1620 mm |
| Number Of Gear Teeth | 135 |
| Permissible Tooth Forces T | 100.2 |
| Max Gear Tooth Load Fz | 100.2 |
| Diameter Of Bearing Raceway | 1440 mm |
| Distance Between Bottom Outer Ring Inner Ring | 6 mm |

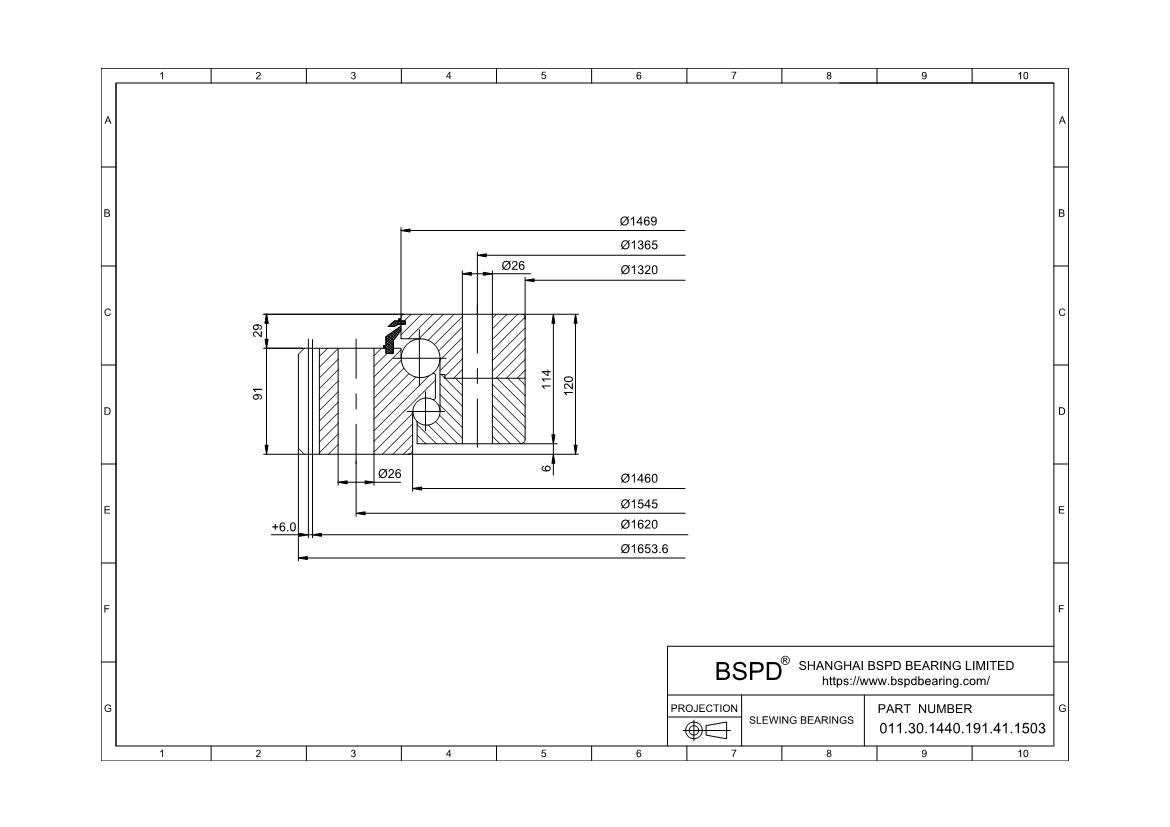

| Correspond | FIG1 |
| x·m | +6.0 |
| k·m | –1.2 |
| K | 29 mm |
| n1 | 3 |
| Bolt Size (M) | 24 mm |
| M | 12 |
| F | 91 mm |
| RoHS | Compliant |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings 011.30.1440.191.41.1503 ? Metric Size Slewing Rings (2) Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
- Fast Delivery √
- Best Quality √
- Good Price √
