011.25.1200.600.11.1503
Metric Size Slewing Rings (2)
Dimensions: Bore (Inner) Diameter: 1100 mm； Outer Diameter: 1378 mm； Width (Thickness): 102 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | 011.25.1200.600.11.1503 |
| Series | Series 01 |
| Gear | External gear |
| Type | Ball |
| System of Measurement | Metric |
| Inside Diameter Of Inner Ring | 1100 mm |
| Outside Diameter Of Outer Ring | 1378 mm |
| Internal Diameter On Outer Ring | 1215 mm |
| Height Of Overall Bearing Assembly | 102 mm |
| Height Of Inner Ring | 96 mm |
| Height Of Outer Ring | 76 mm |
| External Diameter On Inner Ring | 1223 mm |
| Ring Material | 42CRO or 50MN |
| Ball Materrial | 52100_Chrome_Steel |
| Cage Material | Nylon or 300 Series Stainless Steel |
| Seal Material | NBR |
| Weight Of Bearing Assembly | 301 Kg |
| Bolt Circle In Inner Ring | 1135 mm |
| Bolt Circle In Outer Ring | 1290 mm |
| Size Of Hole In Inner Ring | 22 mm |
| Size Of Hole In Outer Ring | 22 mm |
| Number Holes In Inner Ring | 36 |
| Number Holes In Outer Ring | 36 |
| Diametral Pitch | 1350 mm |
| Number Of Gear Teeth | 135 |
| Permissible Tooth Forces T | 47.70 |
| Max Gear Tooth Load Fz | 95.40 |
| Diameter Of Bearing Raceway | 1200mm |
| Distance Between Bottom Outer Ring Inner Ring | 6 mm |

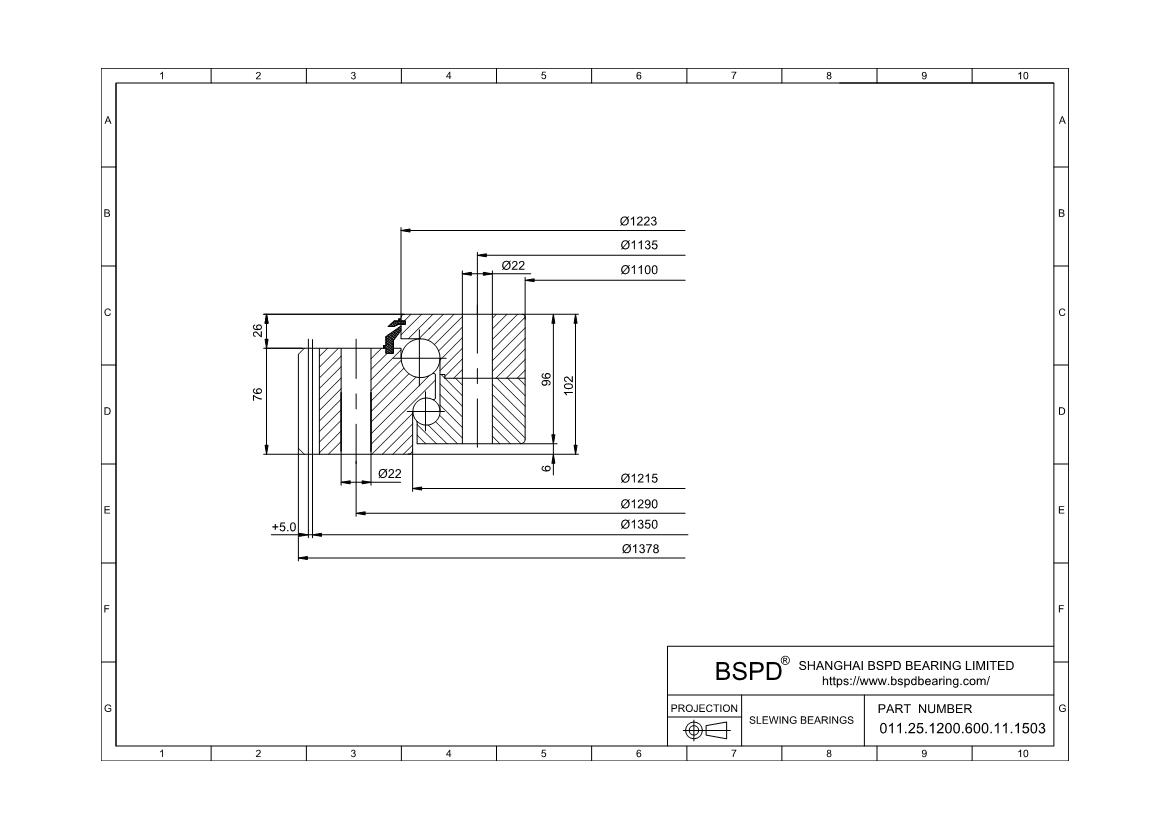

| Correspond | FIG1 |
| x·m | +5.0 |
| k·m | –1.0 |
| K | 26 mm |
| n1 | 3 |
| Bolt Size (M) | 20 mm |
| M | 10 |
| F | 76 mm |
| RoHS | Compliant |
