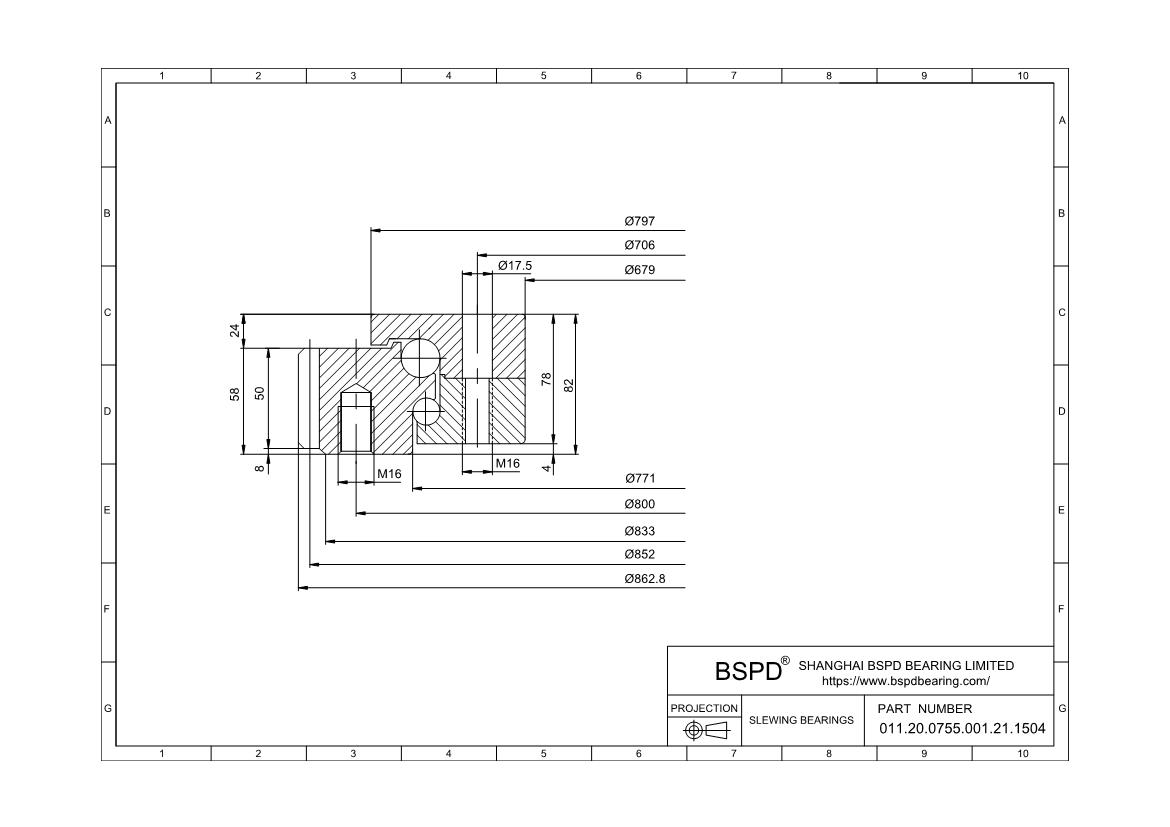

011.20.0755.001.21.1504
Metric Size Slewing Rings (2)
Dimensions: Bore (Inner) Diameter: 679 mm； Outer Diameter: 862.8 mm； Width (Thickness): 82 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | 011.20.0755.001.21.1504 |
| Series | Series 01 |
| Gear | External gear |
| Type | Ball |
| System of Measurement | Metric |
| Inside Diameter Of Inner Ring | 679 mm |
| Outside Diameter Of Outer Ring | 862.8 mm |
| Internal Diameter On Outer Ring | 771 mm |
| Height Of Overall Bearing Assembly | 82 mm |
| Height Of Inner Ring | 78 mm |
| Height Of Outer Ring | 58 mm |
| External Diameter On Inner Ring | 797 mm |
| Ring Material | 42CRO or 50MN |
| Ball Materrial | 52100_Chrome_Steel |
| Cage Material | Nylon or 300 Series Stainless Steel |
| Seal Material | NBR |
| Weight Of Bearing Assembly | 101 Kg |
| Bolt Circle In Inner Ring | 706 mm |
| Bolt Circle In Outer Ring | 800 mm |
| Size Of Hole In Inner Ring | 17.5 mm |
| Size Of Hole In Outer Ring | 17.5 mm |
| Number Holes In Inner Ring | 24 |
| Number Holes In Outer Ring | 24 |
| Diametral Pitch | 852 mm |
| Number Of Gear Teeth | 142 |
| Permissible Tooth Forces T | 24.00 |
| Max Gear Tooth Load Fz | 48.00 |
| Diameter Of Bearing Raceway | 755 mm |
| Distance Between Bottom Outer Ring Inner Ring | 4 mm |
| Correspond | FIG1 |
| x·m | +0.0 |
| k·m | –0.6 |
| K | 24 mm |
| n1 | 2 |
| Bolt Size (M) | 16 mm |
| M | 6 |
| F | 50 mm |
| RoHS | Compliant |
