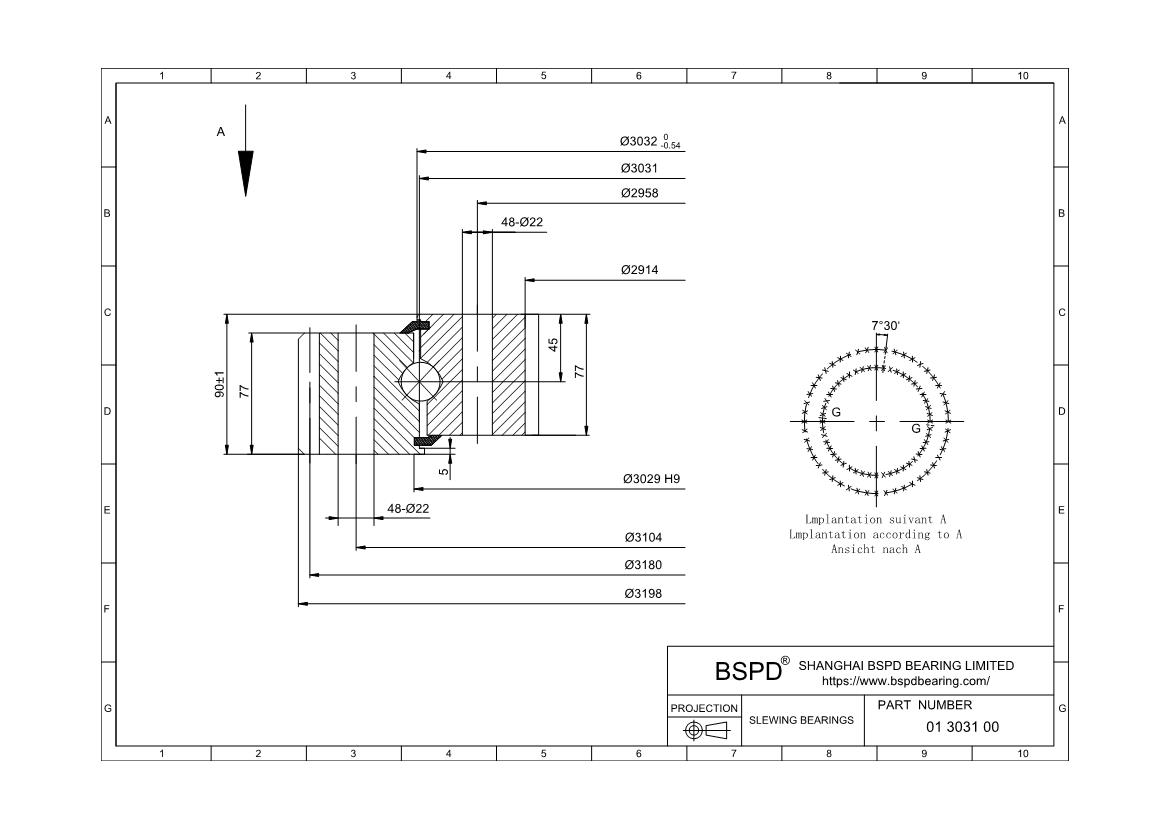

01 3031 00
Metric Size Slewing Rings
Dimensions: Bore (Inner) Diameter: 2914.0 mm； Outer Diameter: 3200.0 mm； Width (Thickness): 90 mm;
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | 01 3031 00 |
| Gear | External gear |
| Geometry | |
| External Diameter (DR) | 3200 |
| Internal Diameter (di) | 2914 |
| Height(H) | 90 |
| Weight(kg) | 716 |
| Gear Data | |
| Pitch Diameter of Gear (D2) | 3180 |
| Module(m) | 10 |
| Number of teeth(z) | 318 |
| Pressure Angle of Gear Teeth (α) | 20 |
| Tooth Form | Droite |
| Mounting Holes | |
| Bolt Circle in Outer Ring (Lo) | 3104 |
| Number Holes in Outer Ring (no) | 48 |
| Bolt Circle in Inner Ring (Li) | 2958 |
| Number Holes in Inner Ring (ni) | 48 |
| MEASUREMENTS IN MILLIMETERS | |
| MAXIMUM DEFLECTION | |
| MAXIMUM MEASUREMENT IN 1 POINT | |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
