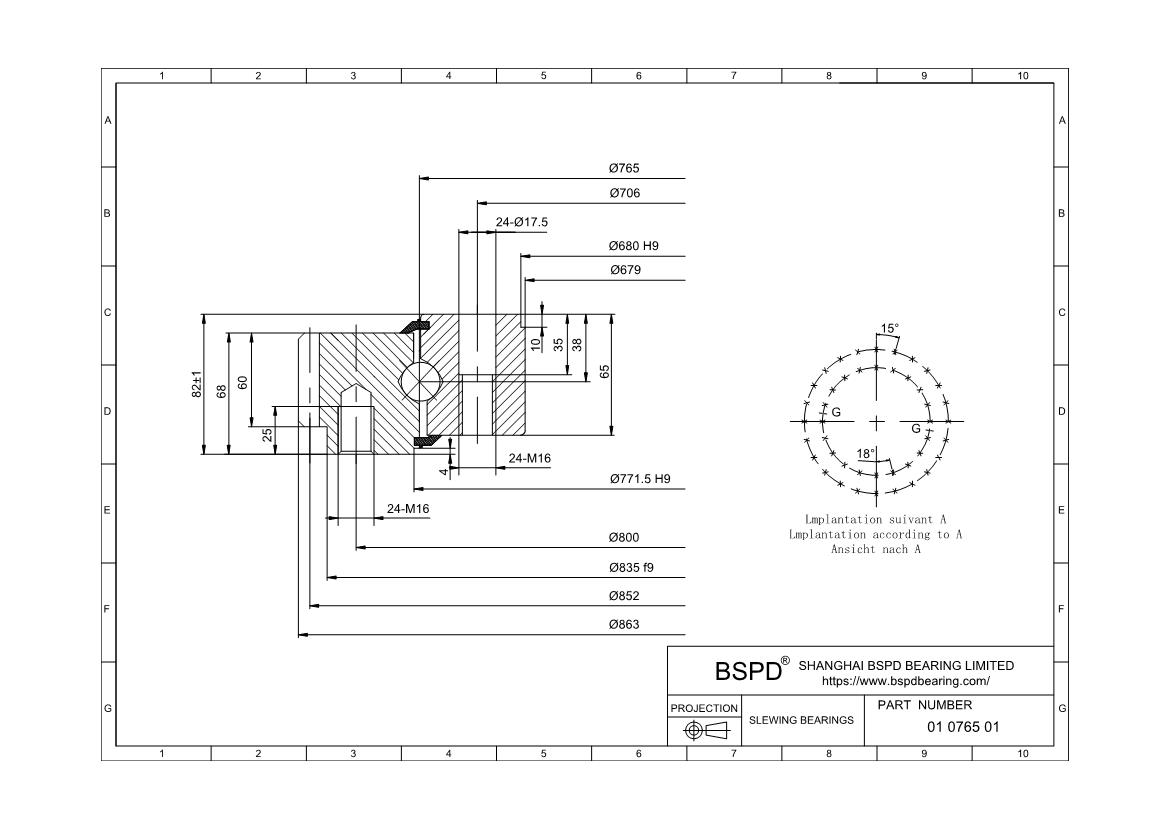

01 0765 01
Metric Size Slewing Rings
Dimensions: Bore (Inner) Diameter: 679.0 mm； Outer Diameter: 863.0 mm； Width (Thickness): 82 mm;
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | 01 0765 01 |
| Gear | External gear |
| Geometry | |
| External Diameter (DR) | 863 |
| Internal Diameter (di) | 679 |
| Height(H) | 82 |
| Weight(kg) | 102 |
| Gear Data | |
| Pitch Diameter of Gear (D2) | 852 |
| Module(m) | 6 |
| Number of teeth(z) | 142 |
| Pressure Angle of Gear Teeth (α) | 20 |
| Tooth Form | Droite |
| Mounting Holes | |
| Bolt Circle in Outer Ring (Lo) | 800 |
| Number Holes in Outer Ring (no) | 24 |
| Bolt Circle in Inner Ring (Li) | 706 |
| Number Holes in Inner Ring (ni) | 24 |
| MEASUREMENTS IN MILLIMETERS | |
| MAXIMUM DEFLECTION | |
| MAXIMUM MEASUREMENT IN 1 POINT | |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings 01 0765 01 ? Metric Size Slewing Rings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
