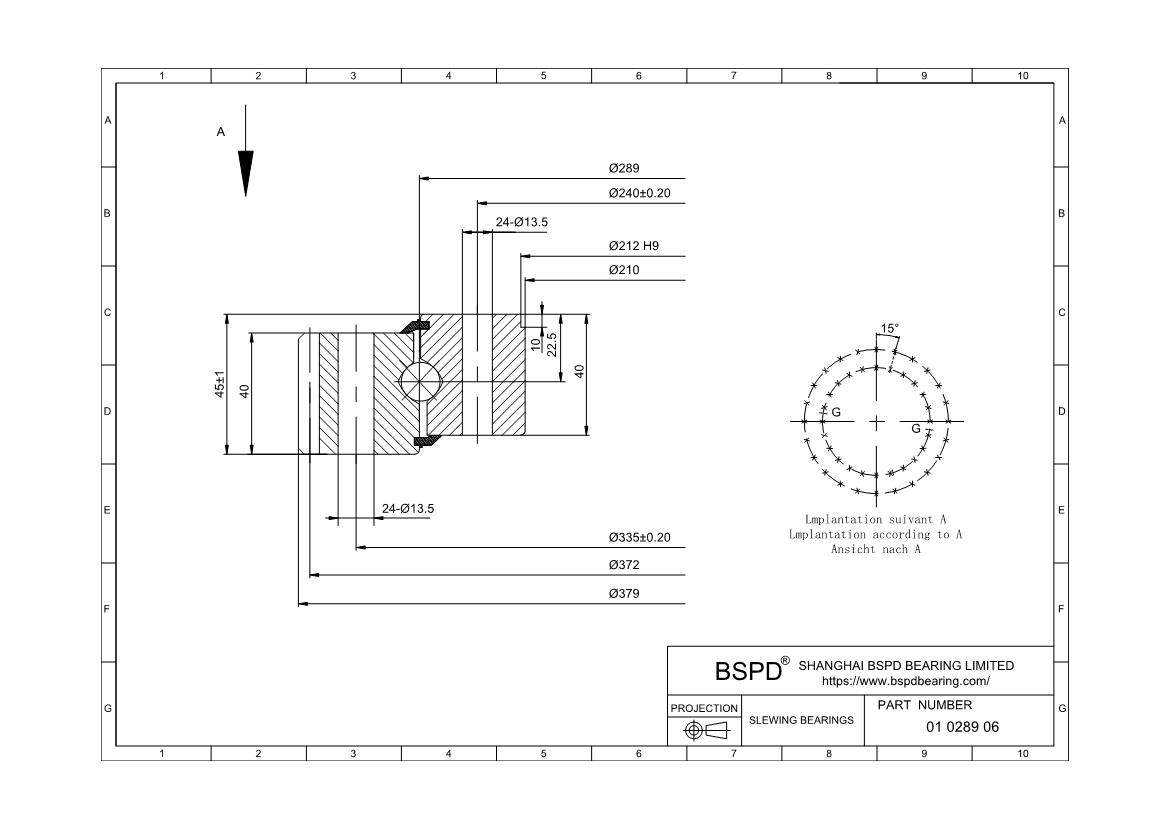

01 0289 06
Metric Size Slewing Rings
Dimensions: Bore (Inner) Diameter: 210.0 mm； Outer Diameter: 379.0 mm； Width (Thickness): 45 mm;
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | 01 0289 06 |
| Gear | External gear |
| Geometry | |
| External Diameter (DR) | 379 |
| Internal Diameter (di) | 210 |
| Height(H) | 45 |
| Weight(kg) | 20 |
| Gear Data | |
| Pitch Diameter of Gear (D2) | 372 |
| Module(m) | 4 |
| Number of teeth(z) | 92 |
| Pressure Angle of Gear Teeth (α) | 20 |
| Tooth Form | Droite |
| Mounting Holes | |
| Bolt Circle in Outer Ring (Lo) | 335 |
| Number Holes in Outer Ring (no) | 24 |
| Bolt Circle in Inner Ring (Li) | 240 |
| Number Holes in Inner Ring (ni) | 24 |
| MEASUREMENTS IN MILLIMETERS | |
| MAXIMUM DEFLECTION | |
| MAXIMUM MEASUREMENT IN 1 POINT | |
