• Angular contact ball bearing structure and principle

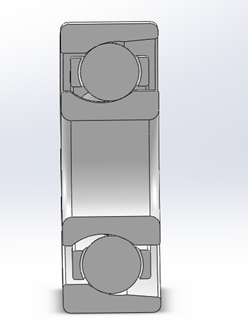

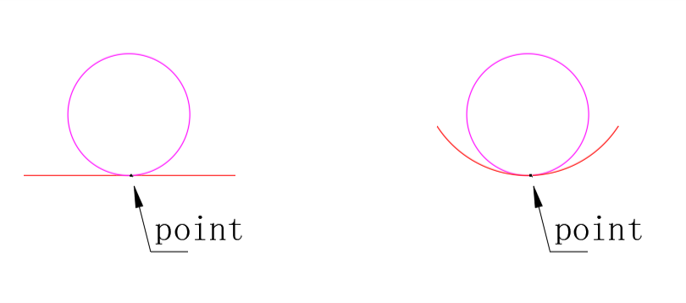

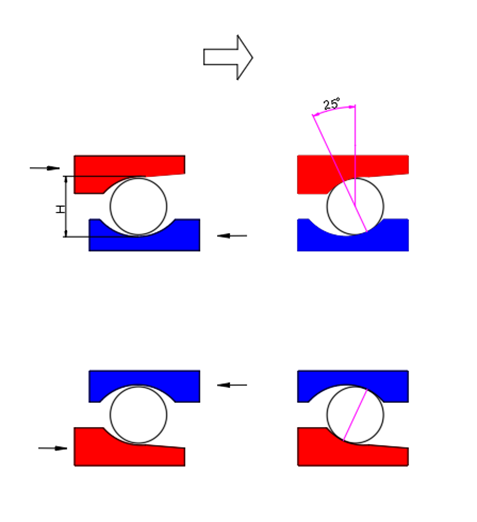

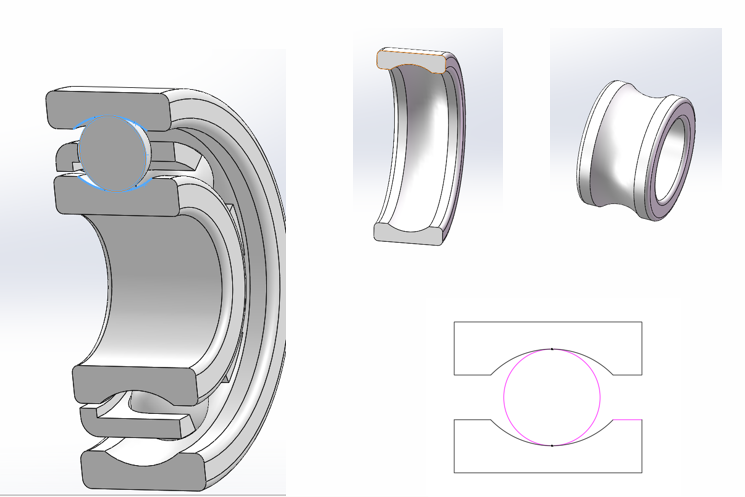

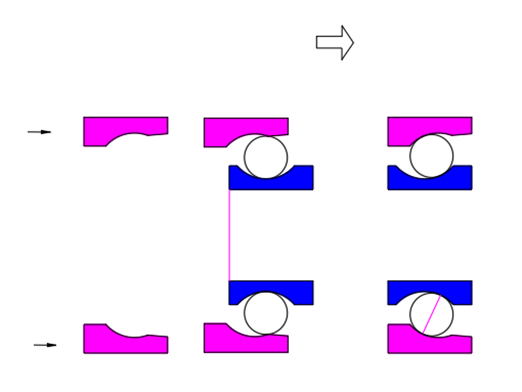

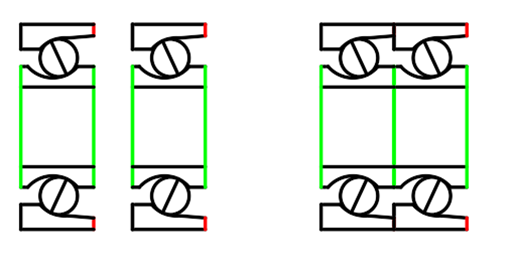

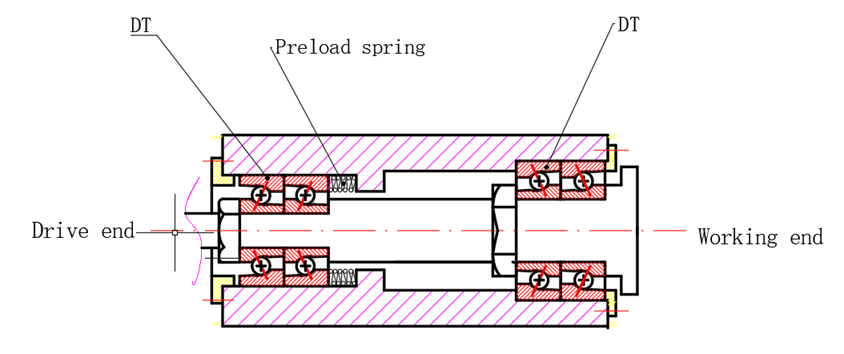

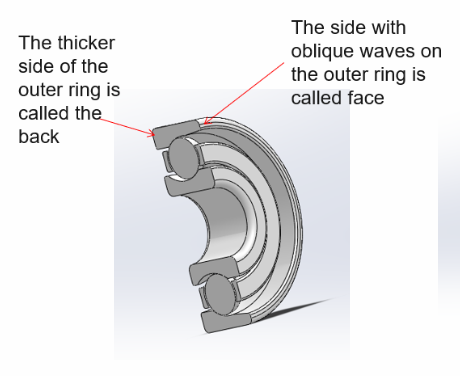

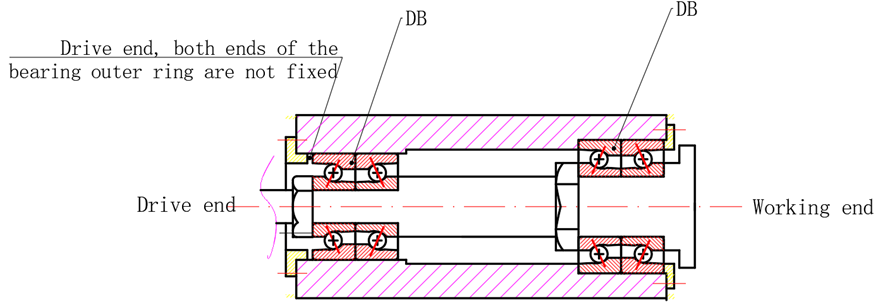

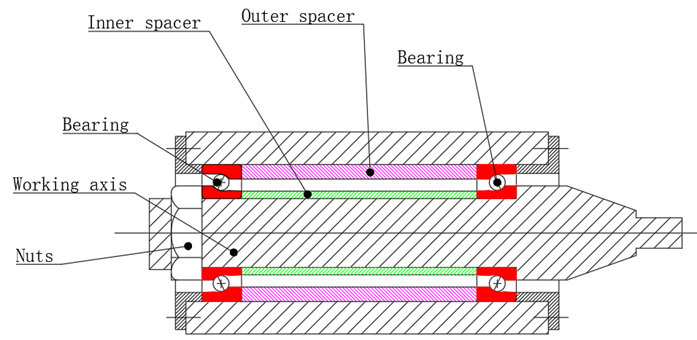

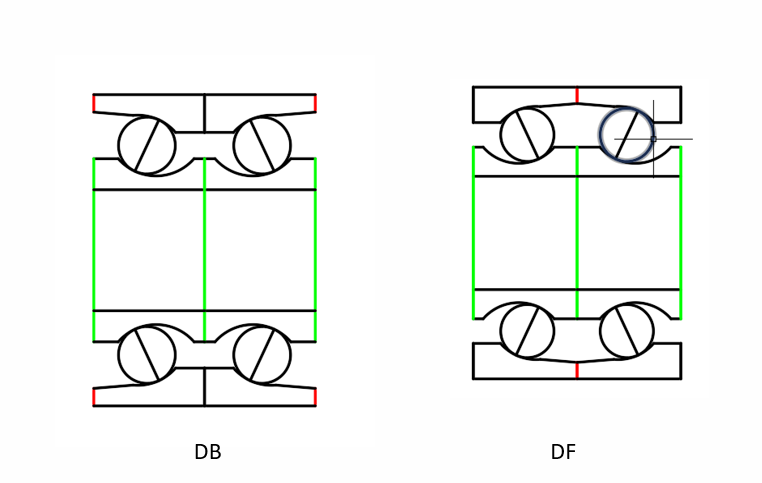

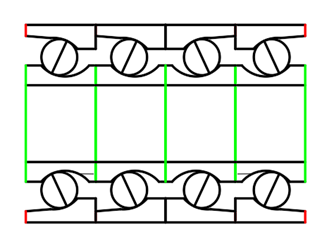

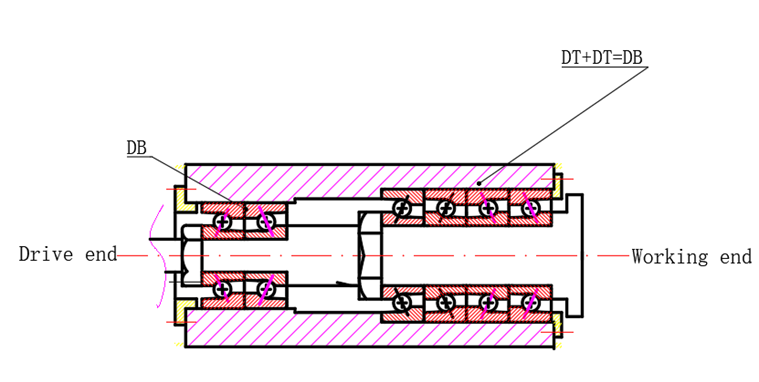

  1、What is the contact angle? The contact point between the steel ball and the raceway of the inner ring, and the contact point between the steel ball and the raceway of the outer ring, and the line of the two contact points form an angle with the diameter direction, which is called the contact angle. You must not understand this explanation, so let's break it down. A、Corner point     1，When a ball is in contact with a plane, it is a point contact。 2，The radius of the arc is greater than the radius of the circle and is tangent to a point. B、We have learned about the contact point above. The raceway radius of all ball bearings is greater than the radius of the steel ball, and all steel balls and raceways are in point contact. 2、Ball bearing structure Deep groove ball bearings. The two points where the steel ball contacts the grooves of the inner ring and the outer ring are connected in the diameter direction The line of the two points where the steel ball contacts the raceways of the inner ring and the outer ring is at an angle relative to the radial tilt type Angular contact ball bearings are very loose in a free state and can only bear one-way axial loads. If the force is applied in the opposite direction, the bearing will fall apart 4、Oblique wave of angular contact ball bearing Angular contact ball bearings have the outer ring with oblique waves, and there are also inner and outer rings with oblique waves. Why are there oblique waves? The oblique wave is for installation. The inner ring cage steel balls are grouped together, and the outer ring is expanded by heating and squeezed in from the oblique wave port. You can also squeeze it in in the opposite direction to make it loose Single row angular contact ball bearings can bear radial load and unidirectional axial load, so single row angular contact ball bearings are generally installed in pairs or 3 sets or 4 sets of bearings together in series. Angular contact ball bearings are usually installed in pairs. The two bearings each pipe the axial force in one direction. There are two commonly used pairing methods as shown in the figure below. Pairing method is: back to back, code name DB. Pairing method: face to face, code name DF Two sets of bearings are connected in series, code-named DT. After the two sets of bearings are used as one set of bearings to increase the load, they can only withstand one-way bearing forces. Two sets of bearings in series are paired together to become four sets of bearings. 5、Angular contact ball bearings have high speed, can withstand high loads, and have high axial positioning accuracy. It is usually applied to precision parts such as main shafts and workpiece shafts of mechanical equipment. BSPD can carry out targeted design according to the user's special working conditions to improve the bearing's durability, temperature resistance, corrosion resistance and other solutions. Application examples of angular joint bearings。 1.Regular use The clearance of the angular contact ball bearing is adjusted when the bearing is installed in the application. As shown, adjust the height of the inner and outer spacers.Or use DT or DF structure to ensure that the thickness of inner and outer spacers is consistent, without adjustment. 2.DB+DB 2.DT+DT+Preload spring 3.（DT+DT）DB+DB
